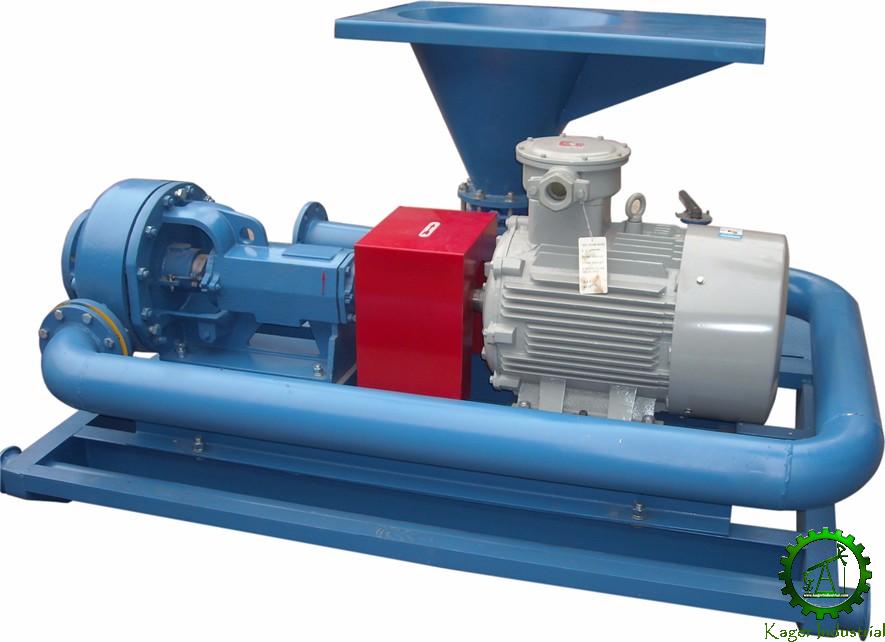

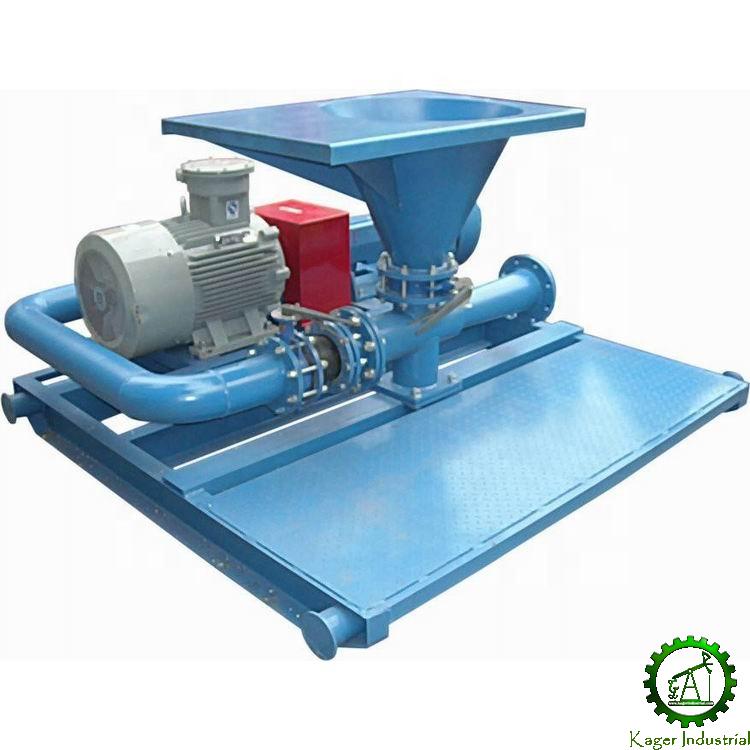

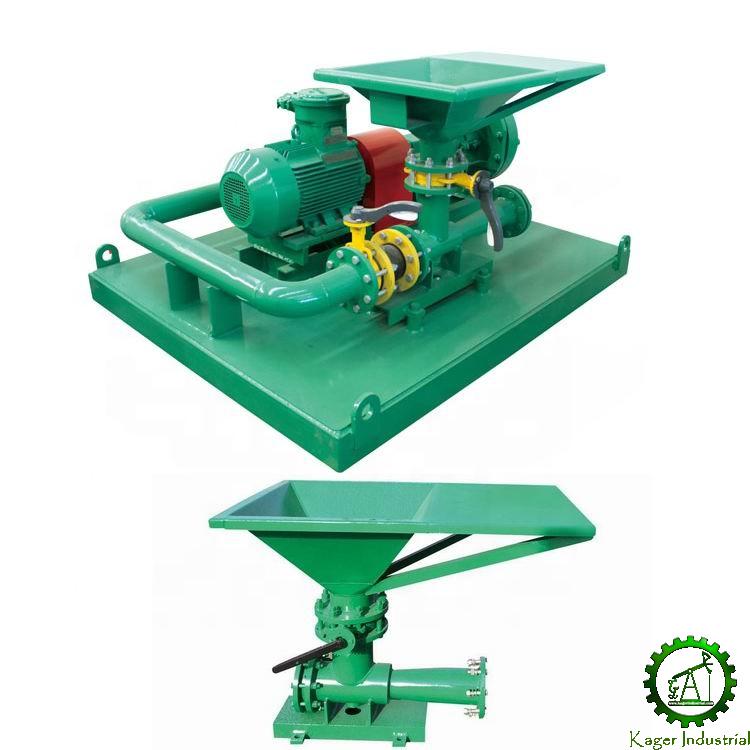

Mud Mixer is used to concoct the drilling fluids and to change its density and viscosity. This device can satisfy the fluid weighting & mixing of solids control system used for 1500m-9000m drilling.
Features
· Mud Mixer is a single jet mixer combined with (45 KW or 55 KW) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers.
· The weighting hopper can be combined with a pump or be used independently with pump connected together by manifold valve.
· Put the drilling fluids materials (bentonites, barite powder) and the corresponding chemical additives (polymer) into circulation tank for increasing the total.
Specifications
|
Model |
Capacity |
Pressure |
Motor |
Inlet |
Outlet |
Ex Standard |
Weight |
Dimension(mm) |
|
KTDMM-50-750(D) |
320m³/h |
0.25～0.4Mpa |
75KW |
DN200 |
DN150 |
EXdIIBt4/IECEX/A-TEX |
1785kg |
2200x1840x1150 |
|
KTDMM-50-550(D) |
272m³/h |
55KW |
DN200 |
DN150 |
1675kg |
2200x1840x1100 |
||
|
KTDMM-30--450(D) |
200m³/h |
45KW |
DN150 |
DN150 |
1475kg |
2200x1840x1135 |
||
|
KTDMM-30-370(D) |
150m³/h |
37KW |
DN150 |
DN150 |
1460kg |
2200x1840x1135 |
||
|
KTDMM-30-300(D) |
120m³/h |
30KW |
DN125 |
DN150 |
1380kg |
2200x1840x1100 |
||
|
KTDMM-20-220(D) |
90m³/h |
22KW |
DN125 |
DN100 |
1167kg |
1850x1540x1000 |
||
|
KTDMM-20-185(D) |
65m³/h |
18.5KW |
DN100 |
DN100 |
1147kg |
1850x1540x1000 |
||
|
KTDMM-10-150(D) |
55m³/h |
15KW |
DN100 |
DN100 |
970kg |
1850x1540x1030 |
||
|
KTDMM-10-110(D) |
45m³/h |
11KW |
DN100 |
DN100 |
950kg |
1850x1540x1030 |
||
|
Remarks:“D”means the electric control cabinet, weight and dimension not including for “D” Model |
||||||||
