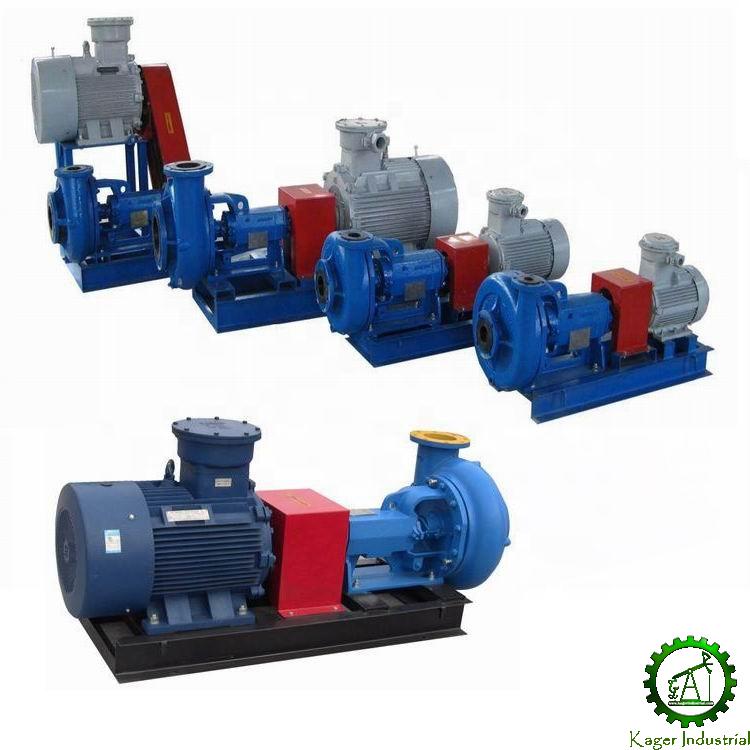

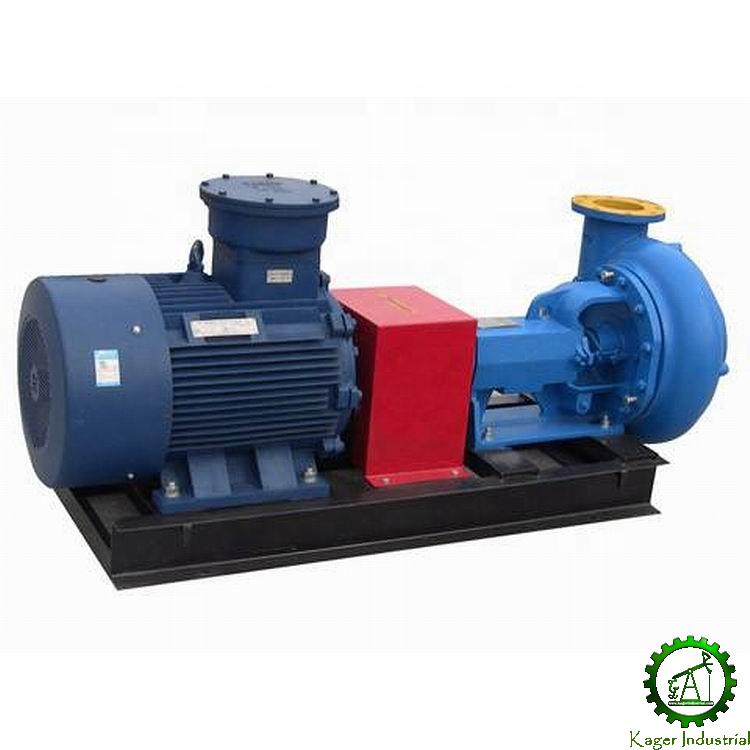

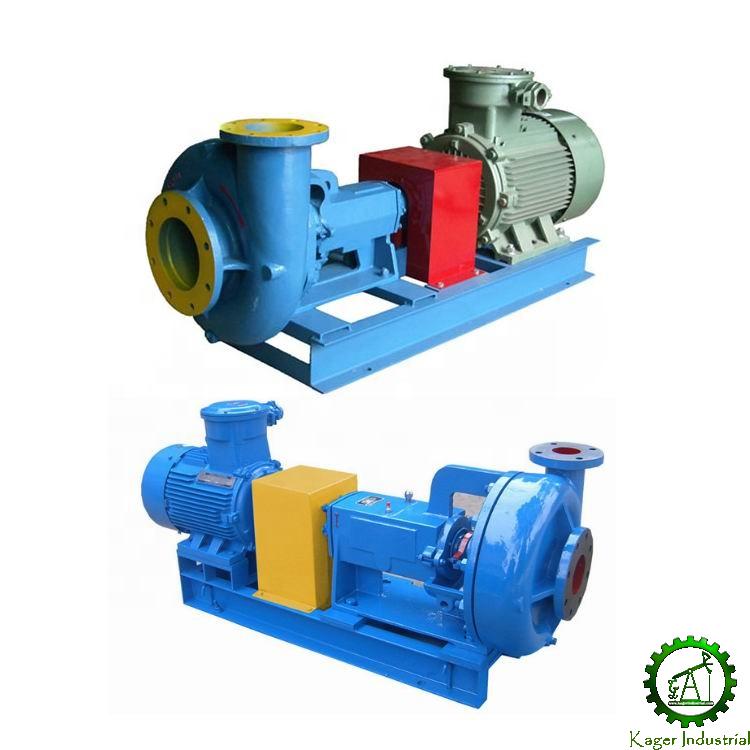

Centrifugal pump
The Centrifugal pump is used for transferring drilling mud, slurry or water by the conversion of rotational kinetic energy to the hydrodynamic energy of the fluid flow. It can be used as a feeding pump for desander, desilter, or as a mixing pump for jet mud mixer. Also, pump can be used as a trip pump and supercharging pump for rig mud pump. The pump meets international standards and sizes, so it easy to buy related parts. It is installation, repair and maintenance are most convenient.
Features
· Reduce the cost of mixing polymers and clays while improving mud properties.
· Available as a belt-driven or diesel-driven package including a hopper, mud gun, and transfer line orifice plate.
· Available for a complete system with skid, tanks, and piping.
Specifications
|
Model |
Flow(m³/h) |
Lift(m) |
Power(Kw) |
Motor Speed(RPM) |
Impeller(Inch) |
|
KTDCP8×6C-14 |
320m3/h |
35m |
75kW |
1450RPM（50Hz） |
14in |
|
KTDCP8×6C-12 |
320m3/h |
35m |
75kW |
1750RPM（60Hz） |
12in |
|
KTDCP8×6C-13 |
272m3/h |
35m |
55kW |
1450RPM（50Hz） |
13in |
|
KTDCP8×6C-11 |
272m3/h |
35m |
55kW |
1750RPM（60Hz） |
11in |
|
KTDCP6×5C-13 |
200m3/h |
35m |
45kW |
1450RPM（50Hz） |
13in |
|
KTDCP6×5C-10 |
200m3/h |
35m |
45kW |
1750RPM（60Hz） |
10in |
|
KTDCP6×5C-12 |
150m3/h |
30m |
37kW |
1450RPM（50Hz） |
12in |
|
KTDCP6×5C-9.5 |
150m3/h |
30m |
37kW |
1750RPM（60Hz） |
9.5in |
|
KTDCP5×4C-13 |
120m3/h |
35m |
30kW |
1450RPM（50Hz） |
13in |
|
KTDCP5×4C-11 |
120m3/h |
35m |
30kW |
1750RPM（60Hz） |
11in |
|
KTDCP5×4C-12 |
90m3/h |
30m |
22kW |
1450RPM（50Hz） |
12in |
|
KTDCP5×4C-10 |
90m3/h |
30m |
22kW |
1750RPM（60Hz） |
10in |
|
KTDCP4×3C-13 |
65m3/h |
35m |
18.5kW |
1450RPM（50Hz） |
13in |
|
KTDCP4×3C-12 |
65m3/h |
35m |
18.5kW |
1750RPM（60Hz） |
12in |
|
KTDCP4×3C-12 |
55m3/h |
28m |
15kW |
1450RPM（50Hz） |
12in |
|
KTDCP4×3C-10 |
55m3/h |
28m |
15kW |
1750RPM（60Hz） |
10in |
|
KTDCP4×3C-11 |
45m3/h |
25m |
11kW |
1450RPM（50Hz） |
11in |
|
KTDCP4×3C-9.5 |
45m3/h |
25m |
11kW |
1750RPM（60Hz） |
9.5in |
