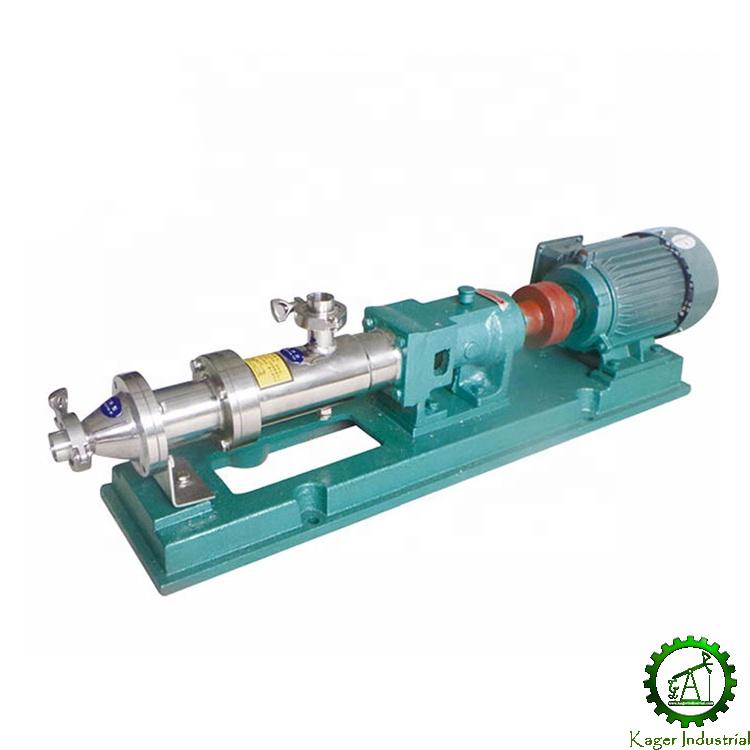

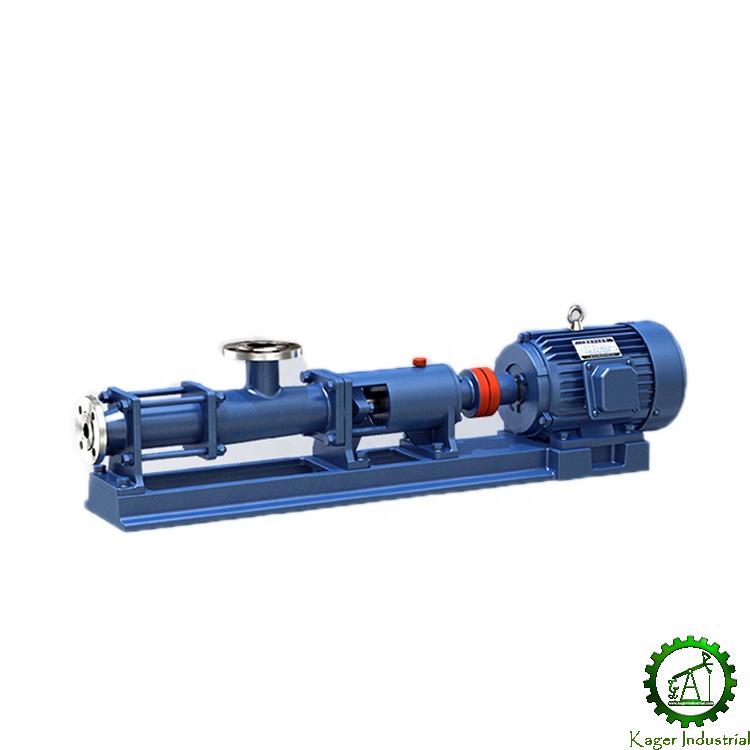

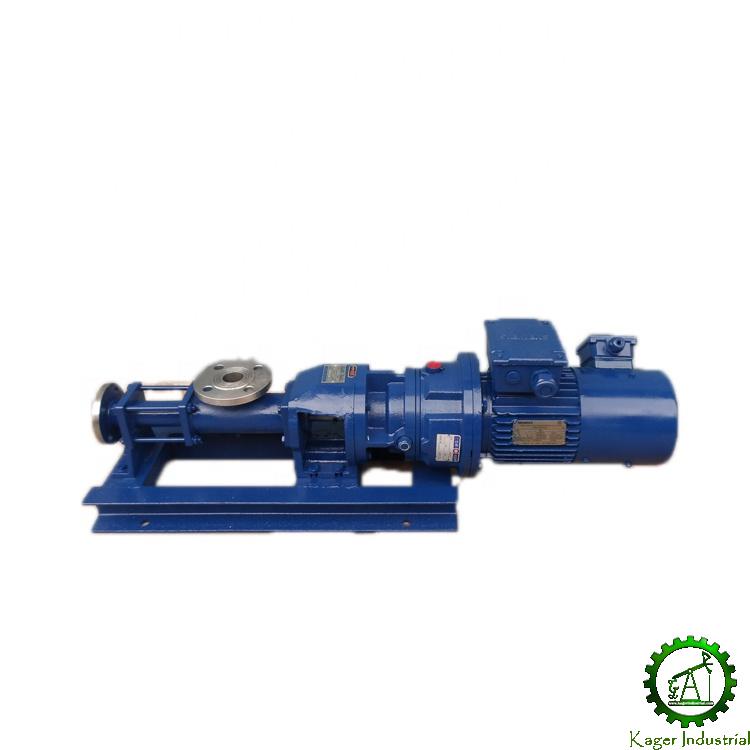

Screw pump
The pump is an ideal pump for feeding to decanter centrifuge without shearing or agitating the drilling mud. It is made of elastomeric material, so it has particular advantages than other pump to transfer the fluids of high viscosity and hard suspended particles included.
Specifications
|
Model |
Flow |
Pressure |
Motor |
Max Speed |
Inlet |
Outlet |
Ex Standard |
Weight |
Dimension(mm) |
|
KTDSP-10-244 |
10m³/h |
0.3MPa |
4kW |
244RPM |
DN80 |
DN80 |
EXdIIBt4/IECEX/A-TEX |
245kg |
2245x320x550 |
|
KTDSP-20-210 |
20m³/h |
0.3MPa |
5.5kW |
210RPM |
DN80 |
DN80 |
|
323kg |
2450x340x562 |
|
KTDSP-30-258 |
30m³/h |
0.3MPa |
7.5kW |
258RPM |
DN100 |
DN100 |
|
386kg |
2761x370x600 |
|
KTDSP-40-252 |
40m³/h |
0.3MPa |
11kW |
252RPM |
DN100 |
DN100 |
|
454kg |
3270x370x665 |
|
KTDSP-50-273 |
50m³/h |
0.3MPa |
11kW |
273RPM |
DN125 |
DN125 |
|
608kg |
3790x400x782 |
|
KTDSP-60-225 |
60m³/h |
0.3MPa |
15kW |
225RPM |
DN125 |
DN125 |
|
649kg |
3322x550x740 |
|
KTDSP-70-230 |
70m³/h |
0.3MPa |
22kW |
230RPM |
DN150 |
DN150 |
|
875kg |
3740x420x785 |
|
KTDSP-80-283 |
80m³/h |
0.3MPa |
22kW |
283RPM |
DN150 |
DN150 |
|
875kg |
3740x420x785 |
|
KTDSP-90-205 |
90m³/h |
0.3MPa |
22kW |
205RPM |
DN150 |
DN150 |
|
875kg |
3740x420x785 |
