Vacuum Pump

  • Sludge Vacuum Pump
  • Sludge Vacuum Pump
Sludge Vacuum PumpSludge Vacuum Pump

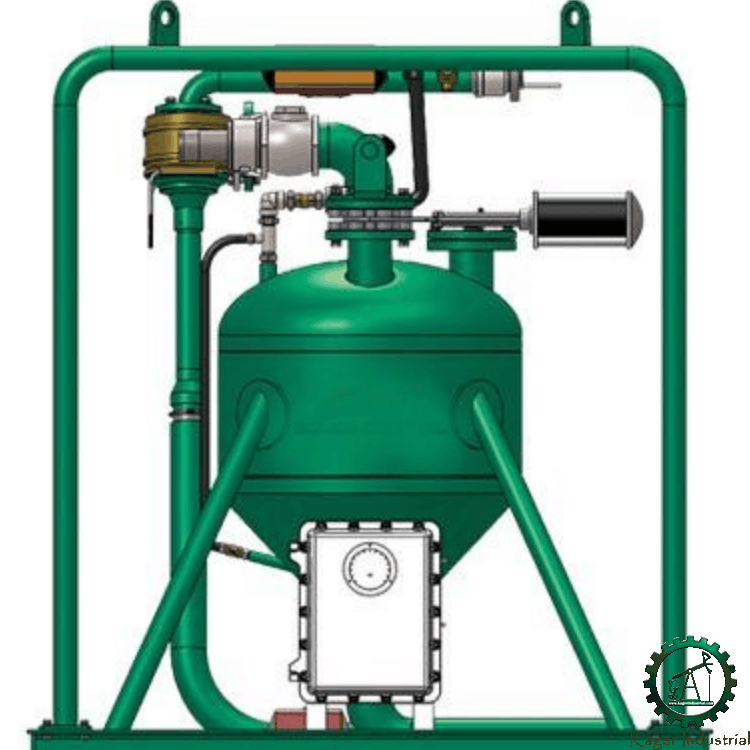

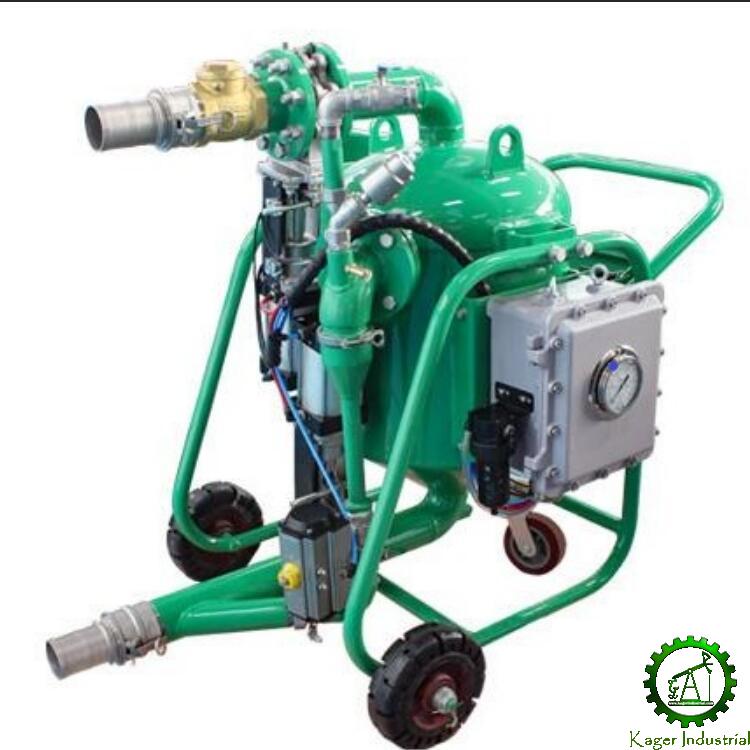

Sludge Vacuum Pump

  • Product description: The vacuum pump transfers solids with high working performance and less maintenance. This is also known as Waste vacuum pump and solids transfer pump.
  • INQUIRY

Vacuum pump

The vacuum pump can be used at tough environmental for solids transfer, high working performance and less maintenance. This is also known as Waste vacuum pump and solids transfer pump. The pump can transfer material with high gravity and high density, solids content max upto 80%.

Specifications

Model

KTDVP-7-40A

GNSP-7-20A

GNSP-7-10A

Max Capacity(m³/h)

40m³/h(Adjustable)

20m³/h(Adjustable)

10m³/h(Adjustable)

Inlet/Outlet Size(Inch)

4”

4”

4”

Vacuum Degree

25”HG(Mercury Column)

Max Suction Distance(m)

50m

Weight(kg)

892kg

386kg

320kg

Max Discharge Distance(m)

1000m

5000m

Max Solids Content

80%

Max Solids Size(mm)

75mm

50mm

Pressure Request

550Kpa-785Kpa(80-114PSI)

550Kpa-690Kpa(80-100PSI)

Air Demand

17m³/min(600CFM)

8m³/min(600CFM)

4.3m³/min(600CFM)

Dimension: L×W×H(mm)

1690x1400x1989mm

1421x900x1448mm

1283×800×1370mm
